RAVEN APPLICATION CONTROL

RATE CONTROL MODULE

Go directly to the ordering guide


​

Raven Application Control

Rate Control Module (RCM)

Raven’s Control Modules are all-season, all-purpose controllers, giving users the flexibility to see and control whatfits their needs. Our solutions are the proven leaders in hundreds of applications — from land prep to harvest. They work on virtually any fleet to increase efficiencies, reduce input costs, and integrate technology solutions.

Our Control Modules are a proven leader in over 200 applications

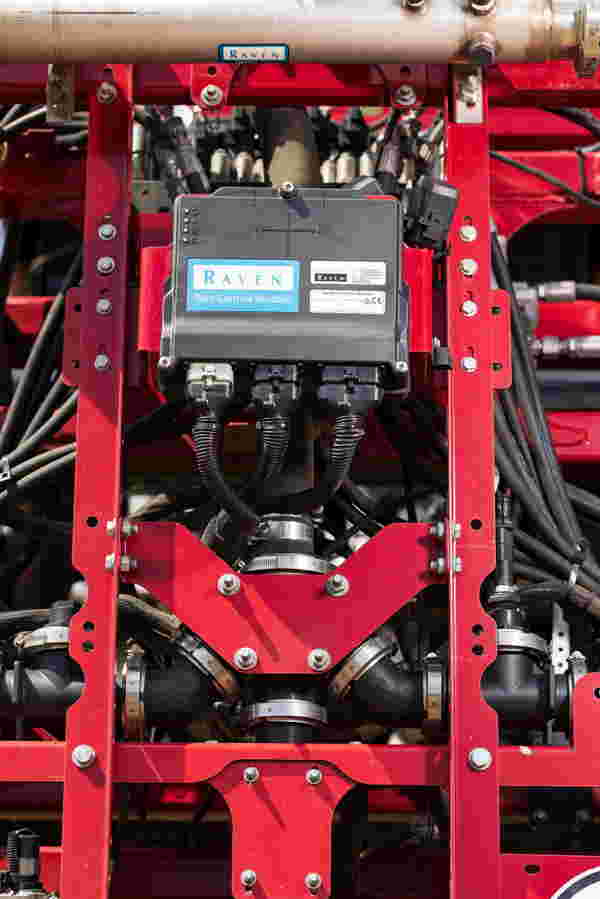

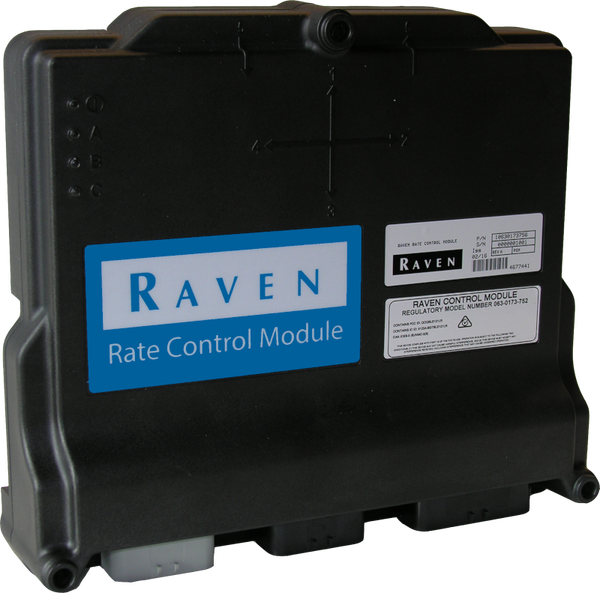

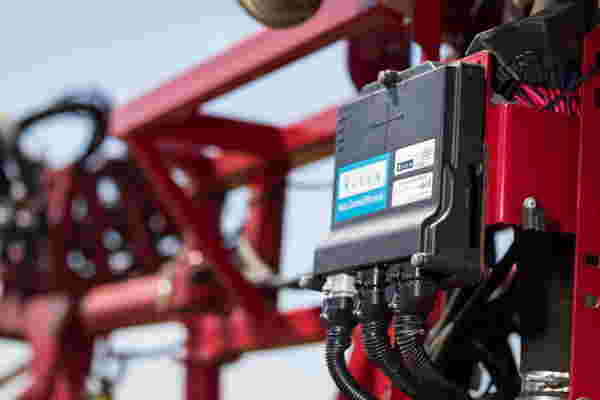

Rate Control Module

Product efficacy is more important than ever before. RCM is the most powerful and flexible ISOBUS rate controller on the market with an intuitive and easy to follow menu structure. The ability to setup and save various application modes optimises the application of any input.


The RCM covers a wide variety of applications - up to five product liquid and granular control, NH3 (including AccuFlow™ HP+), aircarts, planters, seeders, and generic applicators. Sixteen-section control eliminates expensive skips and overlaps for all phases of your operation, from spraying to NH3, and fertiliser application to planting.


The RCM is compatible with many ISOBUS virtual terminals on the market, including the Viper™ 4+, CR7®+ and CR12®+.

Key Features and Benefits

  • AEF certified
  • Liquid product control
  • Section control up to 16 sections
  • Tank fill monitoring
  • Dry applications
  • Spreader and air cart profile
  • Liquid applications NH3 productcontrol
  • Control up to five product applicationsand 16 planter sections
  • Intuitive user interface and diagnostic features
  • Certified worldwide with regulatory marks for CE, RCM, IC, FCC, E-Mark,CNC Mark, ANATEL, ICASA, Ukr-sepro,and SRRC
  • IP67 environmental rating for the harshest of environmental conditions

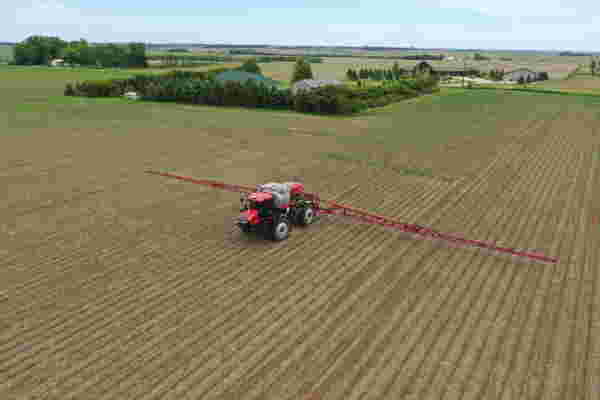

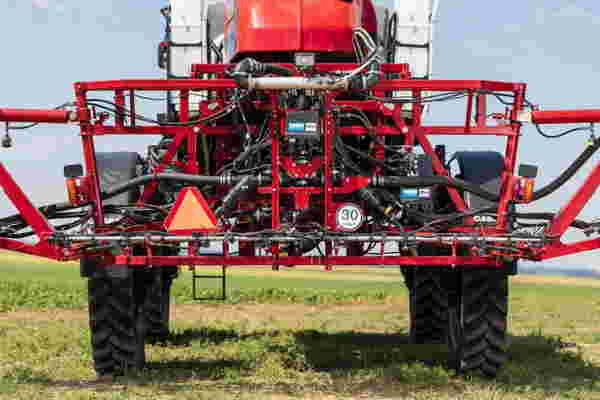

Pull-Type and Self-Propelled Sprayers andLiquid Fertilizer Applicators

  • Single liquid product control
  • Compatible with up to 4 Sidekick Pro™ direct injection pumps
  • Tank fill monitoring

Pull-Type and Self-Propelled Spreaders

  • Rate control up to 5 products
  • Section control up to 12 On/Off sections
  • Spinner/Fan RPM monitoring and control
  • Control auxiliary functions such as gates or oilers
  • Pair with 3rd party scale solution for simplified product calibration; includes in-cab monitoring

Planters

  • Section control up to 32 sections (Flex-seeder,Air, Electric or OEM clutches) with ground drive transmissions
  • Seed rate control up to 4 hydraulic motor drives with turn compensation and up to 24 planter sections
  • Seed rate control up to 16 electric or hydraulic motor drives with turn compensation and section control
  • Fan/Vacuum pressure, scale, bin level and hydraulic/air down pressure monitoring options
  • Liquid/Dry fertiliser add-on control via additional RCM

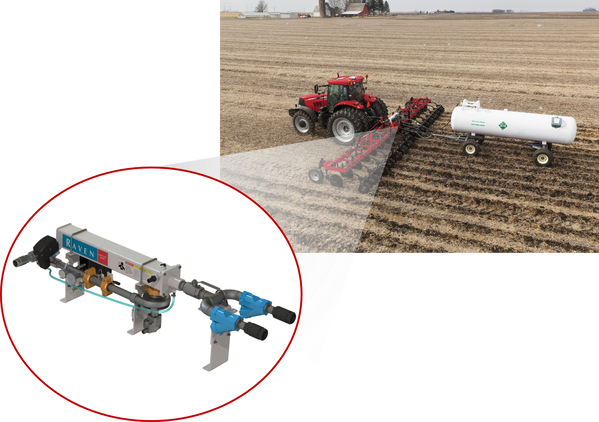

NH3 applicators

  • AccuFlow™ HP+ Boost Pump
  • Rate control up to 2 additional dry or liquid products
  • Section control up to 10 NH3 sections; 14 sections total
  • Temp sensor option for monitoring and alerting of liquid/vapor state
  • Sidekick Pro™ ICD compatible



Seeders, Air Carts, and Generic Applicators

  • Rate control up to 4 products with 16 sectionsor 5 products with 12 sections
  • Section control up to 16 On/Off sections
  • Support up to 2 fan RPM sensors; 6 pressure,bin level and/or shaft sensors; implement height switch
  • Scale monitoring and user aided as-applied calibration
  • Compatibility with Raven Run Blockage Monitoring (RBM)
  • Compatibility with Raven ISOBUS auxiliary display for remote test calibration
  • Independent control of multiple meters per product

 Ordering guide

RCM PART NUMBERS

#
CNH PNPN Description
Kits for IBBC connection on the back of the tractor
A1117-7100-010KIT RCM LIQUID SLURRY TANKER
A2
117-7100-011KIT RCM LIQUID SLURRY DRAGLINE
A3
117-7100-014KIT RCM LIQUID CONTROL PLANTER LIQUID APPLICATOR
A4
117-7100-015KIT RCM PLANTER LIQUID CONTROL 6 SECTION
A5
117-7100-016KIT RCM NH3 3 SECTION
A6
117-7100-017KIT RCM NH3 6 SECTION
A7
117-7100-023KIT RCM DRY FERT SPREADER
A8
117-7100-024KIT RCM RETROFIT RCM TO DEERE GRC HARNESSING
A9
117-7100-033KIT RCM LIQUID SLURRY TANKER STUTSMANS
A10
117-7100-058KIT, RCM, LIQUID SLURRY TANKER & DRAGLINE
A11
117-7100-027KIT RCM SPRAYER 10 SECTION
Kits for 9-pin ISO in-cab connection
B1117-7100-020KIT RCM CAB ISOBUS TO SCS 440/450/460 16 PIN PRODUCT HARNESS
B2
117-7100-021KIT RCM CAB ISOBUS TO SCS 660 22 PIN PRODUCT HARNESS
B3
117-7100-047KIT RCM CAB ISOBUS TO SCS 4400 37 PIN PRODUCT HARNESS
B4
117-7100-048KIT RCM CAB ISOBUS TO TEEJET PRODUCT HARNESS
B5
117-7100-039KIT, RCM, ARAG BRAVO 180S 3 SECTIONS, 2-WIRE VALVES
B6
117-7100-040KIT, RCM, ARAG BRAVO 180S 5 SECTIONS, 2-WIRE VALVES
B7
117-7100-041KIT, RCM, ARAG BRAVO 180S 7 SECTIONS, 2-WIRE VALVES
B8
117-7100-042KIT, RCM, ARAG BRAVO 180S 6/7 SECTIONS, 3-WIRE VALVES
