CASE IH

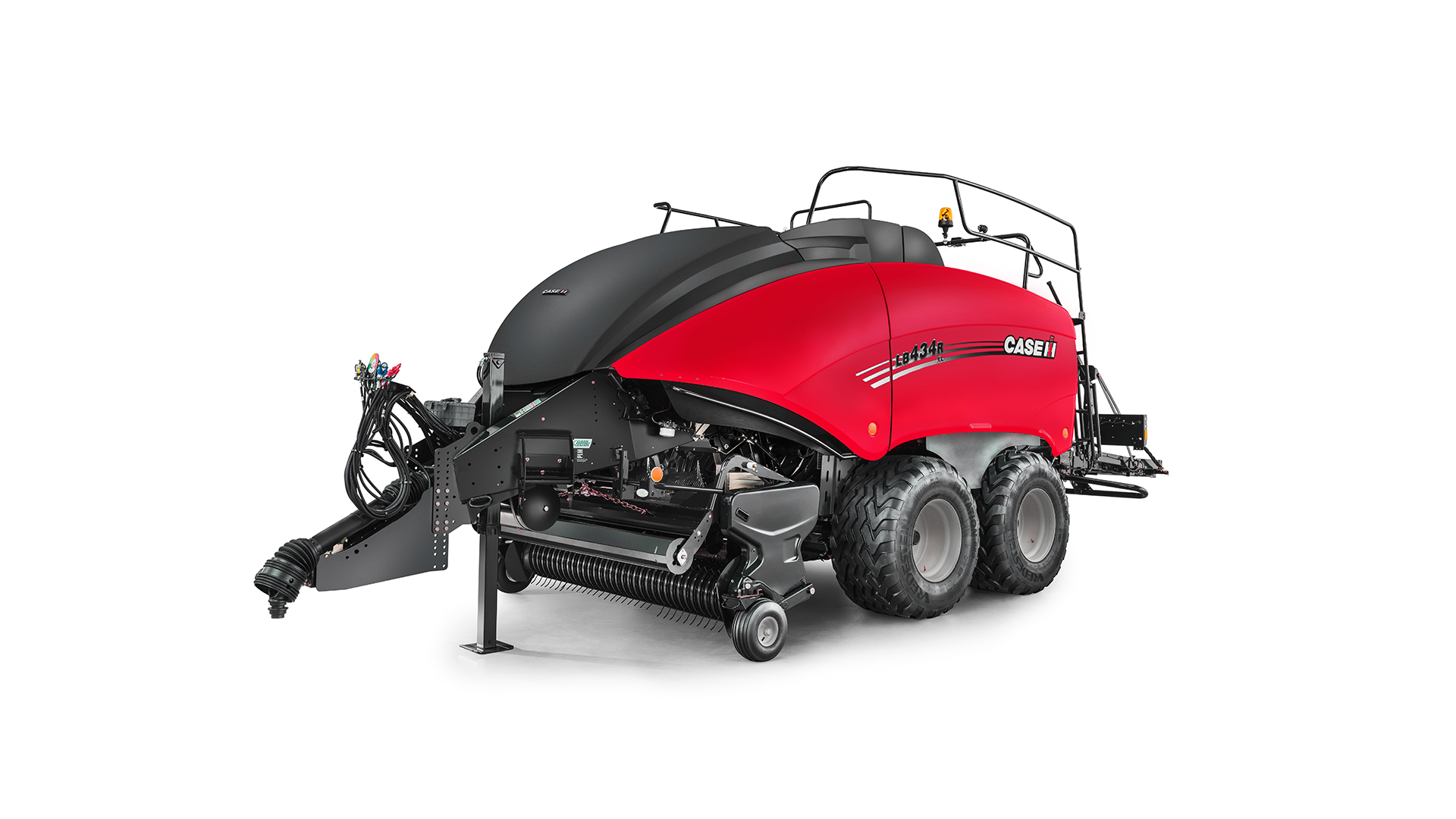

LARGE SQUARE BALERS

1

2

3

4

5

6

7

8

9

10

Container for the scroll indicator

(Will be hidden in the published article)

48097356
(Toolbox on Top Service Deck)

Toolbox positioned on the top service deck, close to the knotter area.



MY 2018-2021
48187100
(LED Beacon)

For optimal visibility.


.


MY 2018-2021
48099941
(Partial Bale Eject)

Fitted in addition to Standard Bale Eject. Two tines on each rail will eject a bale sticking out of the bale chamber without touching the (untied) bale in process.


MY 2018-2021
47964855
(Partial Bale Eject)

Fitted in addition to Standard Bale Eject. Two tines on each rail will eject a bale sticking out of the bale chamber without touching the (untied) bale in process.


MY 2018-2021
84101701
(Quick Fill Pump)

Using the grease reservoir Fill Pump prevents dust and dirt contamination inside the greasing circuit during refill.


MY 2018-2021
84600138
(Mechanical Bale Counter)

In addition to the Bale Counter functions provided on your monitor, a Mechanical Bale Counter can be installed on the baler.


MY 2018-2021
47361569
(Pneumatic Knotter)
(Blow-off)

This extra Knotter Blow-off Kit is making use of compressed air and can be used in combination with the existing standard electrical fan cleaning system for heavy duty cleaning performance. This Kit can only be used in combination with a tractor equipped with Pneumatic Braking System. Can be adjusted to blow from under the Knotters or above the Knotters.


MY 2018-2021
48043464
(ActiveWeigh™)
(Bale Weighing System)

Highly accurate (+/2%) weighing on-the-go, without slowing down or stopping the baling process. Isolation of the bale from next bale and non-weighing part of bale chute. Can handle different bale dimensions. Can cope with different crops and crop conditions. Functions independently of slopes or machine movements.

.

MY 2018-2021
47976967
(ActiveWeigh™)
(Bale Weighing System)

Highly accurate (+/2%) weighing on-the-go, without slowing down or stopping the baling process. Isolation of the bale from next bale and non-weighing part of bale chute. Can handle different bale dimensions. Can cope with different crops and crop conditions. Functions independently of slopes or machine movements.

.

MY 2018-2021
48149845
(Camera)
+ (Additional Monitor)

Camera and additional high resolution monitor. Camera used to optimize view at the rear of the baler.


MY 2018-2021
51428551
(Moisture Sensor)
(Rub Pad)

Dual rub pad type moisture sensor, displays on the go moisture content workscreen. Moisture capture in logging isoXML (option).

.

MY 2018-2021
47602288
(Pneumatic Knotter Blow-off)
(With Compressor)

Pneumatic knotter blow off including compressor, to be used in combination with tractors without pneumatic brakes.

.

MY 2018-2021
47602289
(Pneumatic Knotter Blow-off)
(With Compressor)

Pneumatic knotter blow off including compressor, to be used in combination with tractors without pneumatic brakes.

MY 2018-2021
48094181
(Roller Bale Chute)

For smooth bale drop and in cab bale drop indication. The chute is lifted and lowered hydraulically from the back of the baler.


MY 2018-2021
48024685
(Roller Bale Chute)

For smooth bale drop and in cab bale drop indication. The chute is lifted and lowered hydraulically from the back of the baler.

MY 2018-2021

GENUINE PARTS

Case IH is committed to optimizing your performance. This is why we’ve created an extensive range of Genuine Parts to fit your machines perfectly. Built to the highest standards, just like our new machinery, these replacement parts will keep your machines in top condition today and in the long term.

Read more about Genuine Parts

Find a dealer and order your new baler upgrade!

Pictures shown in this publication are for illustration purpose only. Please see your local dealer for model applicability and correct Part Number for your machine.
